Cubic Craniophor
GPM Model 201 Price: $3,409
Product Details

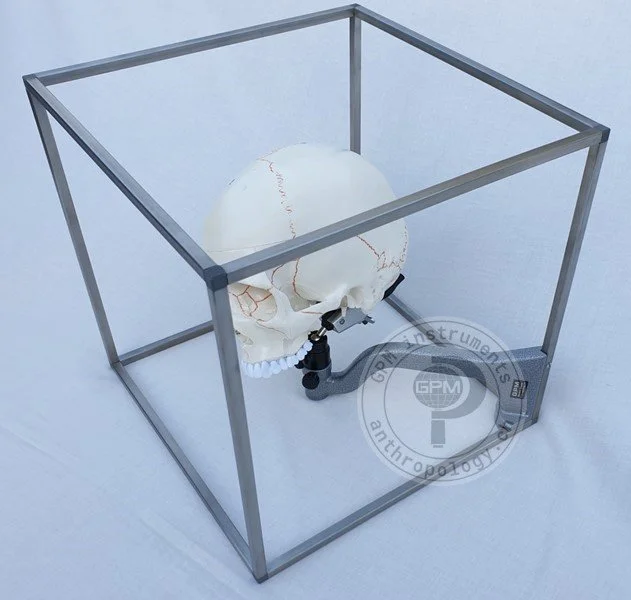

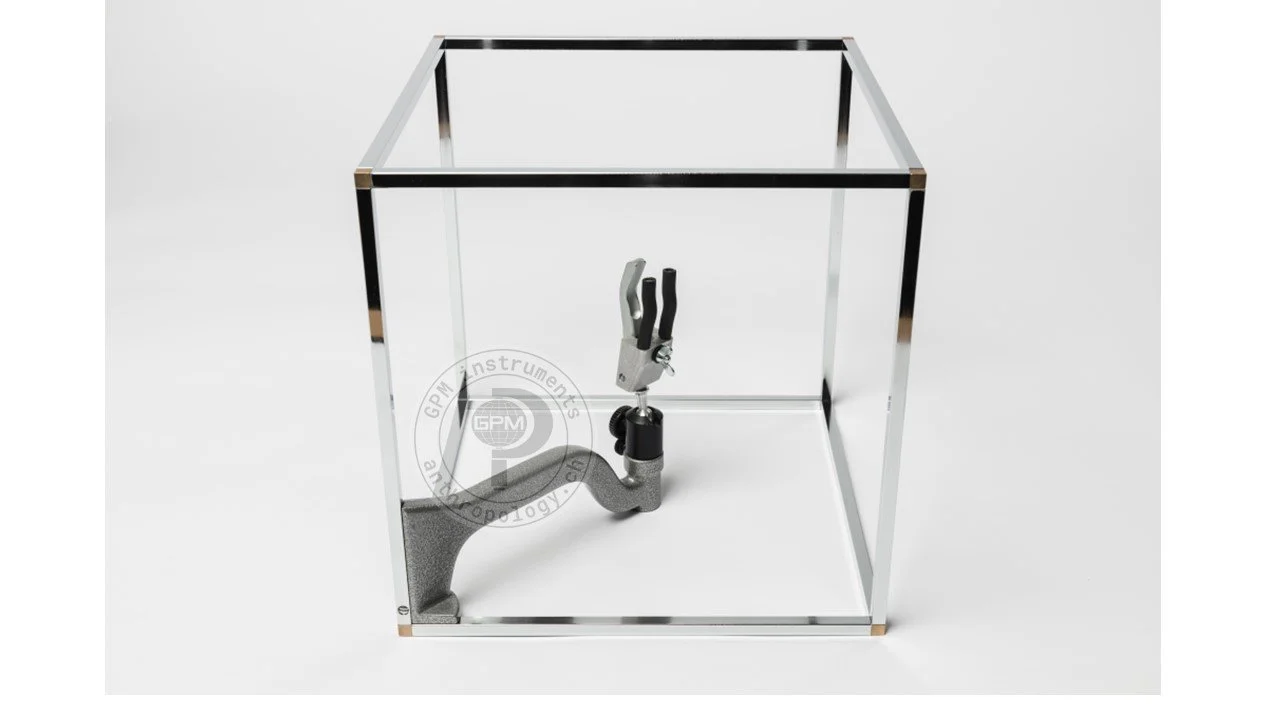

The Cubic Craniophor consists of a precisely constructed framework with a lateral length of 28 cm. The cranial chamber, which can be removed and exchanged, can be fixed in the sheath by means of a fixing screw. The sheath is borne by an arm fixed at one corner.
The cranium must be held firmly in a pair of locating clamps, which are removed from the Craniophor. After the cranium is secured, the clamps are placed in the sheath such that the sheath screw comes to rest on one side and the hinge lever on the other side. After initial rough adjustment of the orientation of the cranium along the ear-eye plane (or any other desired plane), it is then important to use the Horizontal tracing needle as a levelling pin (No. 205) for fine adjustment.
Where a cranium has a defective occipital bone, the cranium is secured in the Cubic Craniophor using the Skull Bowl (No. 203, a chrome-plated bowl) instead of the clamps. After filling the plate with wax, putty, plasticine etc. the cranium is pressed into the substance. Adjustment is effected following the same principles as for the whole cranium.
The Skull Bowl (or cranial plate) has a diameter of 90 mm. It can also be used with the Tubular Craniophor (No. 207).
Specifications
Measuring range: human skull
Weight: 120g
GPM anthropological instruments are high-precision instruments, manufactured for decades to the highest levels of Swiss quality craftsmanship. These instruments are exported worldwide and are based on the anthropology developed by Rudolf Martin. Ongoing work on new technology and development ensures an assortment of GPM instruments that are always up-to-date and meet every demand.
